Framework
Vision-Language-Action (VLA) models have emerged as a promising approach for enabling robots to follow language instructions and predict corresponding actions. However, current VLA models mainly rely on 2D visual inputs, neglecting the rich geometric information in the 3D physical world, which limits their spatial awareness and adaptability.

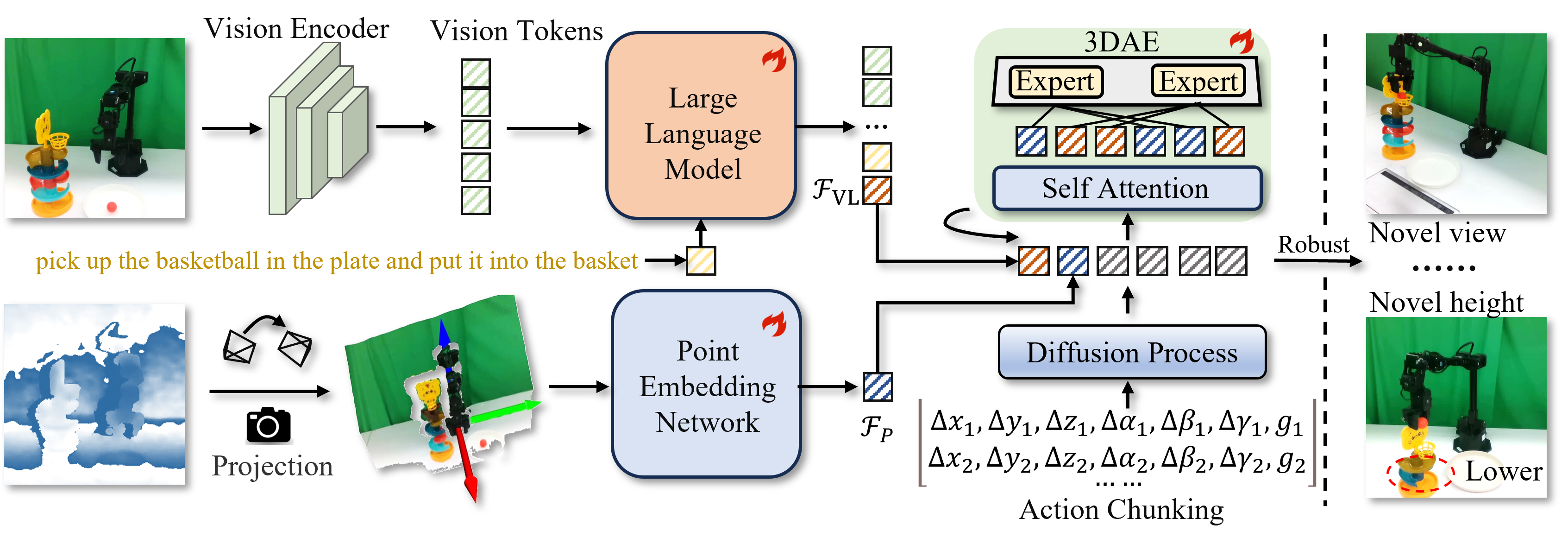

In this paper, we present GeoVLA, a novel VLA framework that effectively integrates 3D information to advance robotic manipulation. It uses a vision-language model (VLM) to process images and language instructions, extracting fused vision-language embeddings. In parallel, it converts depth maps into point clouds and employs a customized point encoder, called Point Embedding Network, to generate 3D geometric embeddings independently. These produced embeddings are then concatenated and processed by our proposed spatial-aware action expert, called 3D-enhanced Action Expert, which combines information from different sensor modalities to produce precise action sequences.
Through extensive experiments in both simulation and real-world environments, GeoVLA demonstrates superior performance and robustness. It achieves state-of-the-art results in the LIBERO and ManiSkill2 simulation benchmarks and shows remarkable robustness in real-world tasks requiring height, size adaptability and viewpoint invariance.
We present several in-domain tasks, including stacking blocks, inserting a circle, picking up a hairclip, hanging a cup, covering a Matryoshka doll, picking up a carrot, placing a basketball, and stacking cups.
We train the put basketball task in the fifth layer, and evaluate the models from the third to the sixth layers
We observe that the position of the circular ball is difficult to accurately perceive, often leading to empty grasps. When encountering out-of-distribution cases, 2D-based methods fail to localize the basket in 3D space, and instead tend to grasp along the projection line from the camera to true position of the basket.
at the third layers
at the forth layers
at the fifth layers (training)
at the sixth layers
We train the cover Matryoshka task at the base size, and evaluate the models by scaling the doll size
Larger dolls tend to shift the grasping action toward the rear, while smaller dolls increase the difficulty of the task.
much larger than training
slightly larger than training
training
smaller than training
We train the stack block task at the base view, and we evaluate the models by shifting the camera view
We incorporate a point cloud centered on the end-effector into our model, which remains invariant under changes in viewpoint.
training view
shifting 15 degrees
shifting 30 degrees
shifting 45 degrees
We evaluate the models by changing the background and lightness
varying background
varying lightness
